Your e-commerce store is humming with overnight sales, and then the phones light up. The server room overheated, the core switch faltered, and revenue evaporated in minutes.
Many assume the HVAC is to blame, but more often the real culprit is poor airflow management. At Camali Corp, we design, build, and maintain mission-critical environments for hospitals, fintech startups, and Fortune 100 offices. With over 150 server rooms under our belt, we’ve refined airflow into a repeatable blueprint that works for any space under 1,500 square feet. Follow the steps below to protect your equipment, cut cooling costs, and keep your operations running smoothly.
Why Airflow Matters More Than You Think
Servers pull cool air in through the front and push hot air out the back. When that hot air recirculates into another server’s intake, temperatures rise and equipment can be damaged. Even an 18°F increase can cut hardware life in half, according to ASHRAE 9.9. Cooling is also a major energy expense, making up roughly 37 percent of a server room’s power bill, but smart airflow design can reduce that cost by 20 to 40 percent. Poor airflow is not just expensive to run, it can also lead to costly downtime. In Uptime Institute’s 2024 Global Data Center Survey, more than half of respondents said their most recent major outage cost over $100,000, with one in five reporting losses above $1 million.
Pre-Planning Checklist
Before installing any racks, start by planning key variables. First, calculate rack density and BTU load. List every device, note its watt draw, and convert to BTUs. Small server rooms often run 3 to 6 kW per rack, but anything above 8 kW usually needs containment.
Next, evaluate the room envelope and clearance. Measure length, width, and height, including obstructions like pillars. Electrical panels must have at least 36 inches of clearance according to NEC 110.26.
Compliance with ASHRAE 9.9 and local codes is essential. Maintain inlet temperatures between 64.4 and 80.6 °F and ensure fire-suppressant systems, such as FM-200, have unobstructed paths.
Finally, plan power and data pathways. Decide if cables will run overhead on ladder racks or under the floor in trays before racks are placed. Proper organization and planning here set the stage for effective cable management solutions.
Step-by-Step Layout Blueprint
Step 1: Map Power & Data Runs First
Run input cables and power whips into the rack from the cold aisle side. This keeps rear exhausts clear and prevents airflow blockages.
Step 2: Implement Hot-Aisle / Cold-Aisle Orientation
Align racks front-to-front for cold aisles and back-to-back for hot aisles. For 42U racks, a 4-foot cold aisle and 3-foot hot aisle work well.
Step 3: Leave 3-Foot Service Clearance
Maintain at least 3 feet at the rear of racks, following NEC and ANSI/TIA-942 standards. Double-check door swings to avoid conflicts.
Step 4: Door & CRAC Placement
Position cooling units perpendicular to hot aisles so warm air moves away efficiently. Learn more about our cooling and HVAC services.
Step 5: Seal Cable Cutouts
Use brush strips on every opening. Even a fist-sized hole can leak 50 CFM of conditioned air.
Step 6: Test with Thermal Camera
Run a thermal scan to spot hot spots and recirculation before they cause downtime. Using a thermal camera app is a quick way to check for airflow issues.
Airflow Enhancements That Deliver 10× Results

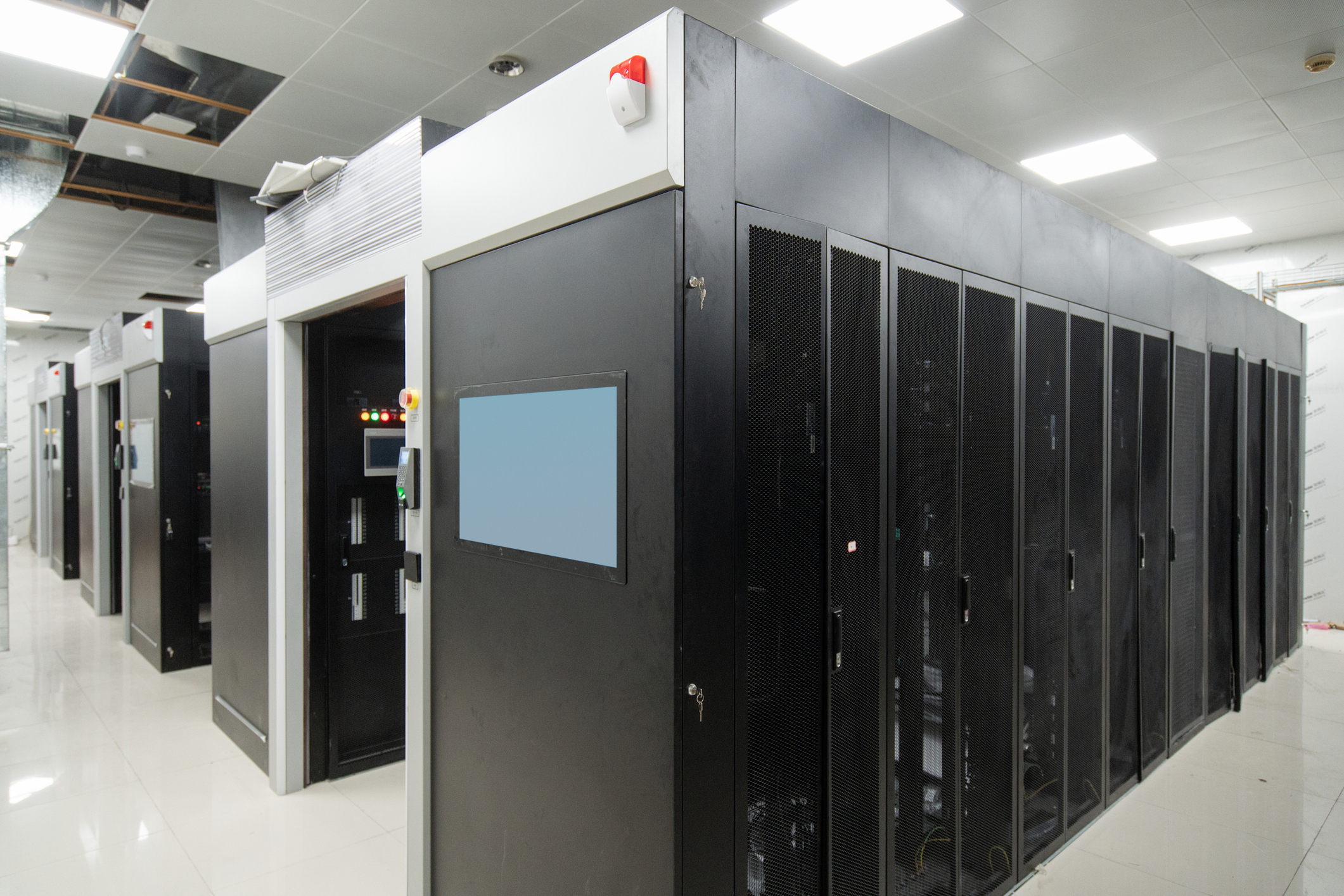

Airflow improvements can make a dramatic difference in cooling efficiency and equipment reliability. Fill every unused rack U with blanking panels to block bypass airflow. Perforated floor tiles belong only in cold aisles, never hot, and for rooms under 300 sq ft start with 25 percent open area, adjusting after a smoke test. For denser setups, cold-aisle containment uses Plexiglas and vinyl curtains to trap cool air, delivering a strong return on investment in under 18 months for racks over 6 kW. Hot-aisle containment is more expensive but works well with rear-door heat exchangers to further optimize airflow.
Case Story: Disney Data Center Upgrade
At Disney’s data center, Camali Corp performed a major infrastructure upgrade that strengthened power resilience and improved redundancy. The project included designing and installing enhanced UPS systems to support mission-critical operations. By upgrading the electrical backbone of the facility, the data center now maintains higher reliability and better protection against power interruptions, helping safeguard operations for critical workloads.
Testing, Monitoring & Ongoing Optimization
Smoke tests release non-toxic smoke at floor vents so you can watch airflow patterns and spot recirculation issues. Temperature sensors positioned at the top, middle, and bottom of every other rack feed data to Camali Corp’s IoT dashboard for real-time monitoring. Quarterly audits include infrared scans, filter changes, and cable management sweeps to maintain efficiency and protect equipment.
Next Steps: Partnering with Camali Corp
You can tackle airflow yourself, but experienced specialists make the difference. Camali Corp has designed airflow for biotech clean rooms and Tier III data centers, offering turnkey server-room design and build, Computational Fluid Dynamics (CFD) modeling, and 24/7 remote environment monitoring. Protect uptime, reduce energy costs, and keep your equipment safe by booking a free 30-minute assessment or call 949-580-0250.
